A U-Net with Statistical Shape Restrictions Applied to the Segmentation of the Left Ventricle in Echocardiographic Images

Eduardo Galicia-Gómez; Fabían Torres-Robles; Jorge Pérez; Boris Escalante-Ramírez; Fernando  Arámbula Cosío

doi:10.17488/RMIB.44.4.10

Authors

Eduardo Galicia-Gómez Universidad Nacional Autónoma de México, México https://orcid.org/0009-0008-0897-8763
Fabían Torres-Robles Laboratorio de Física Medica, Instituto de Física - Universidad Nacional Autónoma de México, México https://orcid.org/0000-0002-9489-0774
Jorge Pérez-González Instituto de Investigaciones en Matemáticas Aplicadas y en Sistemas - Unidad Yucatán - Universidad Nacional Autónoma de México, México https://orcid.org/0000-0002-4069-4268
Boris Escalante-Ramírez Facultad de Ingeniería - Universidad Nacional Autónoma de México, México https://orcid.org/0000-0003-4936-8714
Fernando Arámbula Cosío Instituto de Investigaciones en Matemáticas Aplicadas y en Sistemas - Unidad Yucatán - Universidad Nacional Autónoma de México, México https://orcid.org/0000-0001-7607-7686

DOI:

https://doi.org/10.17488/RMIB.44.4.10

Keywords:

convolutional neural networks, echocardiography, Left ventricle segmentation, statistical shape analysis

Abstract

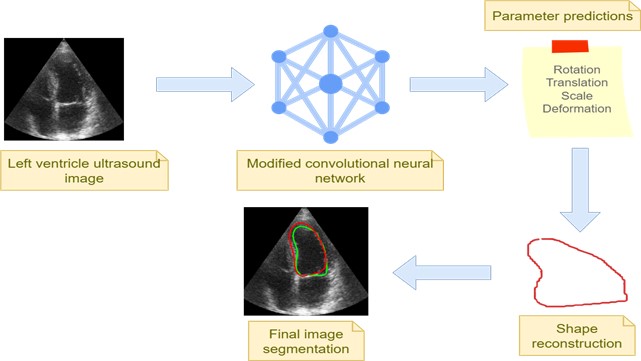

This paper aims to introduce an innovative approach to semantic segmentation by leveraging a convolutional neural network (CNN) for predicting the shape and pose parameters of the left ventricle (LV). Our approach involves a modified U-Net architecture with a regression layer as the final stage, as opposed to the traditional classification layer. This modification allows us to predict all the shape and pose parameters of a statistical shape model, including rotation, translation, scale, and deformation. The adapted U-Net is trained using data from a point distribution model (PDM) of the LV. The experimental results demonstrate a mean Dice coefficient of 0.82 on good quality images, and 0.66 including mean and low-quality images. Our approach successfully overcomes a common issue encountered in CNN-based semantic segmentation. Unlike the inaccurate pixel classification that often leads to unwanted blobs, our CNN generates statistically valid shapes. These shapes hold significant potential in initializing other methods, such as active shape models (ASMs). Our novel CNN-based approach provides a novel solution for semantic segmentation, offering shapes and pose parameters that can enhance the accuracy and reliability of subsequent medical image analysis methods.
